Features | Specifications | Using the battery pack PM148-6000. | Charging the battery pack PM148-6000.
| PM148-6000 |
 |
 |
 ¡¡ |
| Features: |
|
| High Capacity & Super Long Runtime: |
| Compatible & Multifunction: |
| Popular, Portable & Convenient: |
| Quick Charge, Long Cycle life & No Memory Effect: |
| Good Security, Reliability & Environmental Recycling: |
| Effective Power Supply & Electricity-saving function: |
| Specifications: |
|

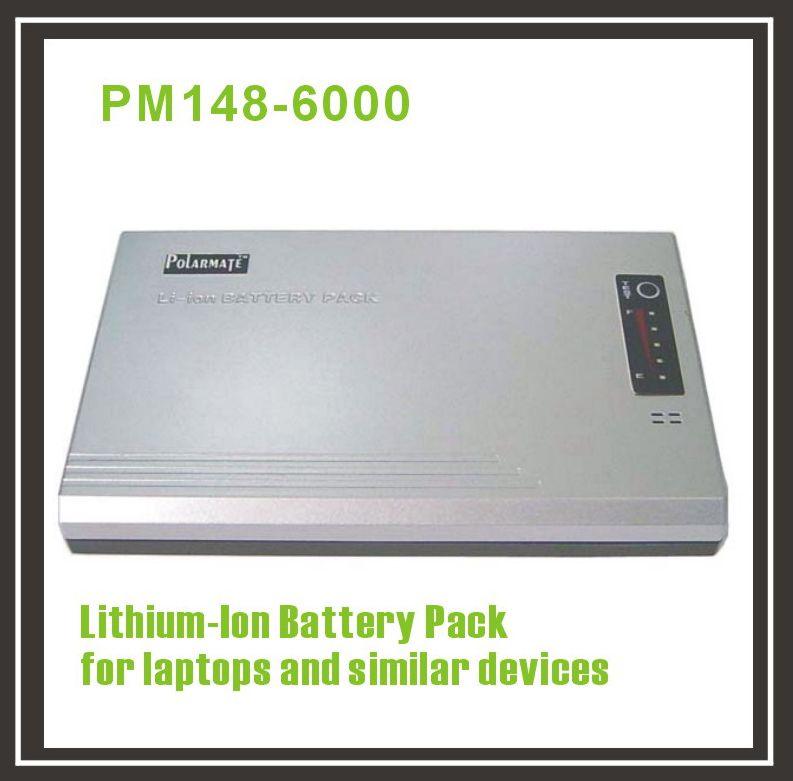

| Description:
External Lithium-Ion Battery Pack for laptops
or similar devices.

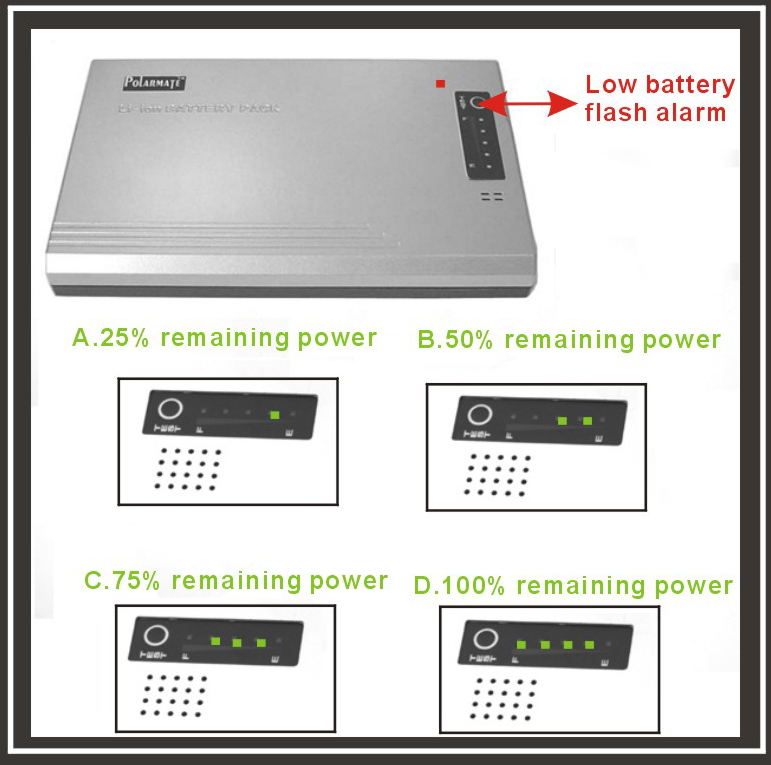

Cell: Lithium-ion cell(Imported from LG, Korea) Battery Capacity: 14.8V/6000mAh Battery Output Voltage: DC12~16.8V Battery Output Current: 6A Charge Time: 4.5 hours(5 hours maximum charge) Cycle Life: more than 500 times Charge Temperature: 0¡æ~40¡æ Discharge Temperature: -20¡æ~60¡æ(Recomend -10¡æ~50¡æ) Storage Temperature: -10¡æ~40¡æ(Recomend -5¡æ~35¡æ) Battey Size: 166mmX106mmX22mm Battery Weight: 600g Battery Gauge: 5 level LED indicator Battery Protection: over-charge/over-discharge/excess current/short circuit |
| Using the battery pack PM148-6000. | |
| * Step 1 * Step 2 |
|

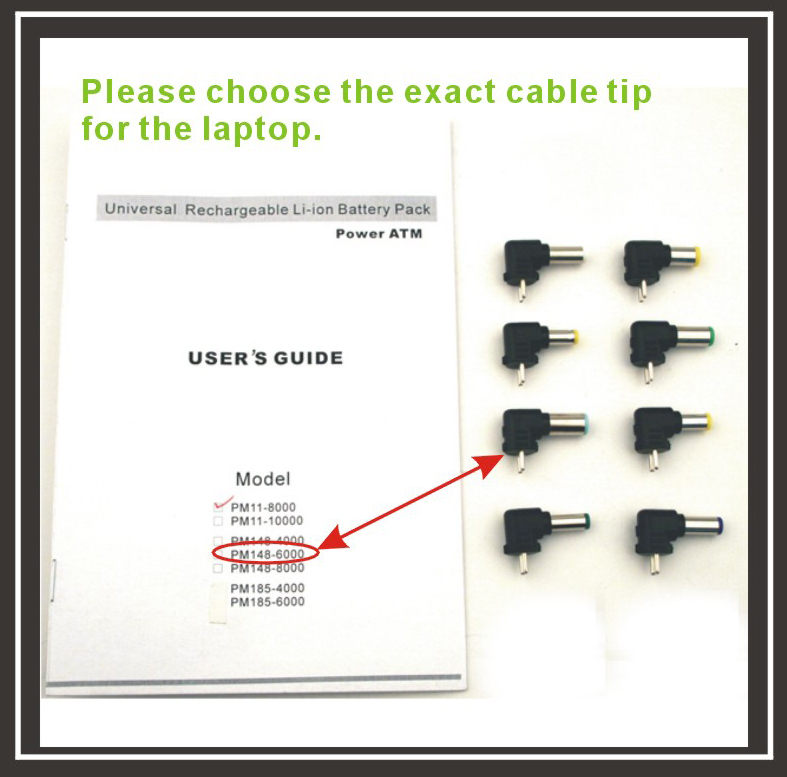

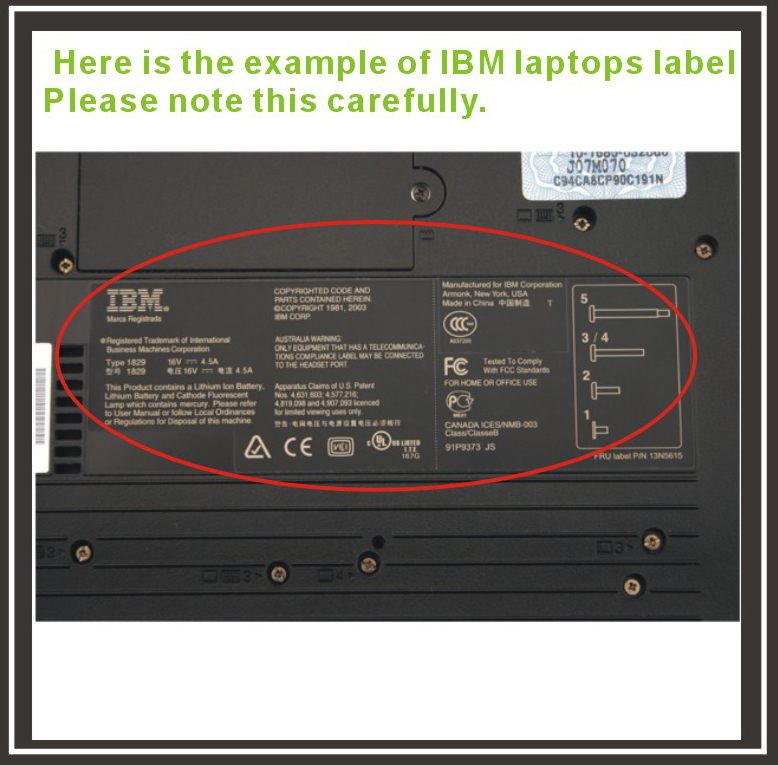

| Read the user's guide for PM148-6000 carefully to make sure using this battery pack correctly. | Re fer to the Operating Instruction of the digital cameras or devices as following example of picture. |
|
|
|
| *Step 3 |
|

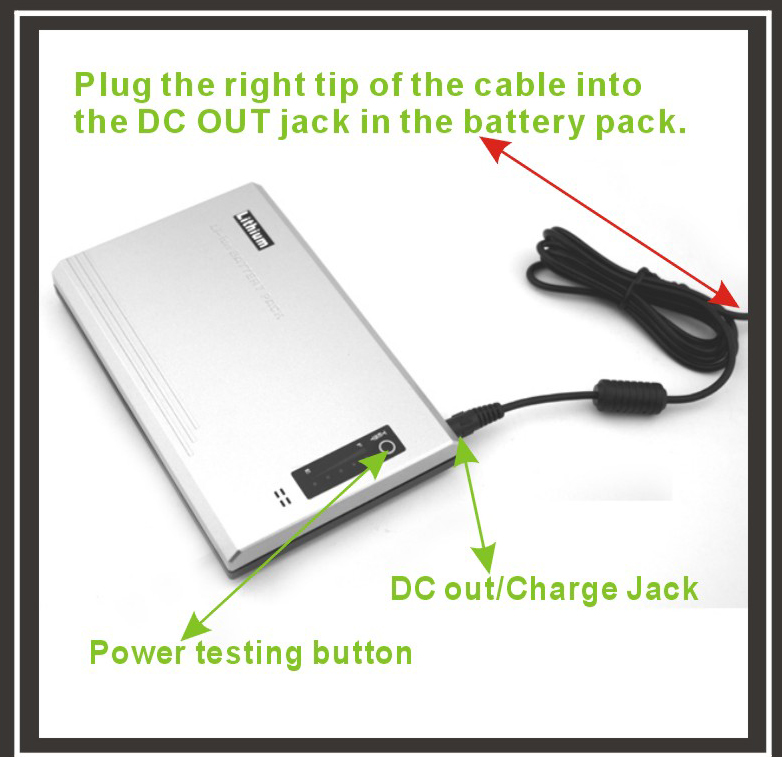

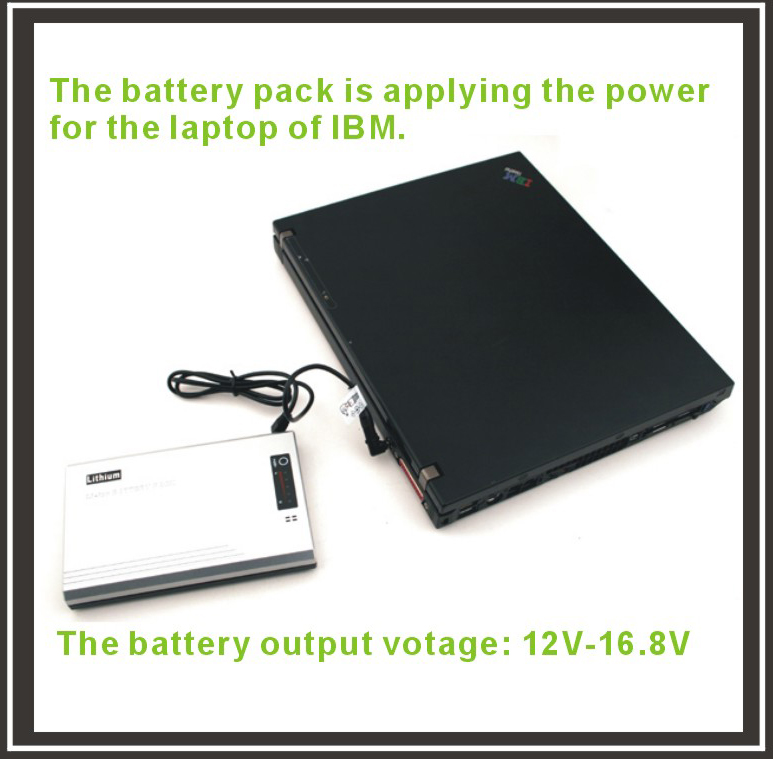

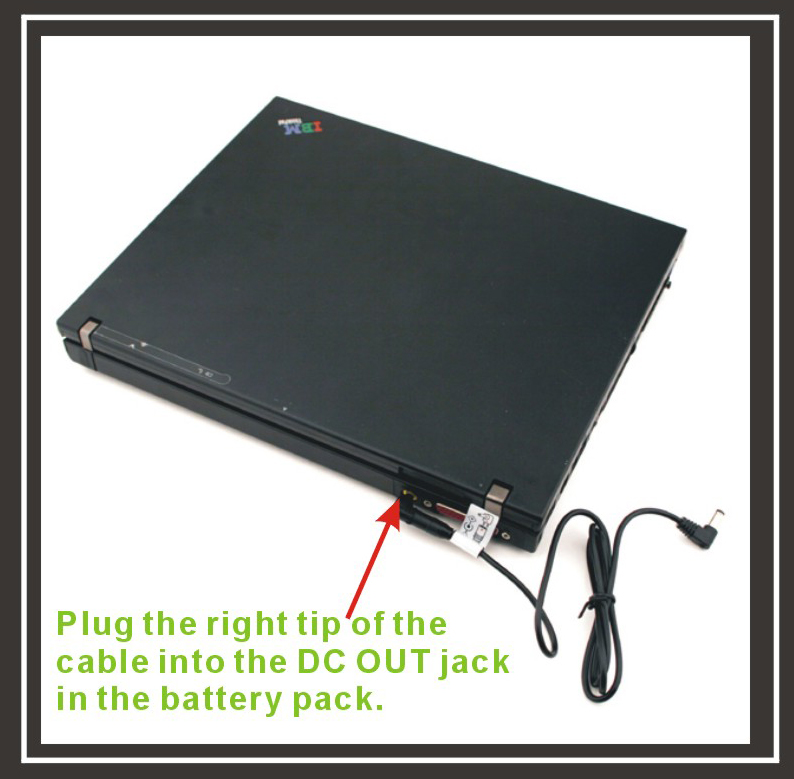

Please make sure the remaining power is enough, plug the right tip of the cable into the DC OUT jack in the battery pack, then plug the other tip into the DC IN jack in your digital device. And then press the Switch Button, the batty pack start to supply power for your digital cameras and devices. |
||
|
|
|
|
