Features | Specifications | Using the battery pack NBMate-118. | Charging the battery pack NBMate-118.
| NBMate-118 |
 |
 |
 ¡¡ |
| Features: |
|
| High Capacity & Super Long Runtime: |
| Compatible & Multifunction: |
| Popular, Portable & Convenient: |
| Quick Charge, Long Cycle life & No Memory Effect: |
| Good Security, Reliability & Environmental Recycling: |
| Effective Power Supply & Electricity-saving function: |
| Specifications: |
|

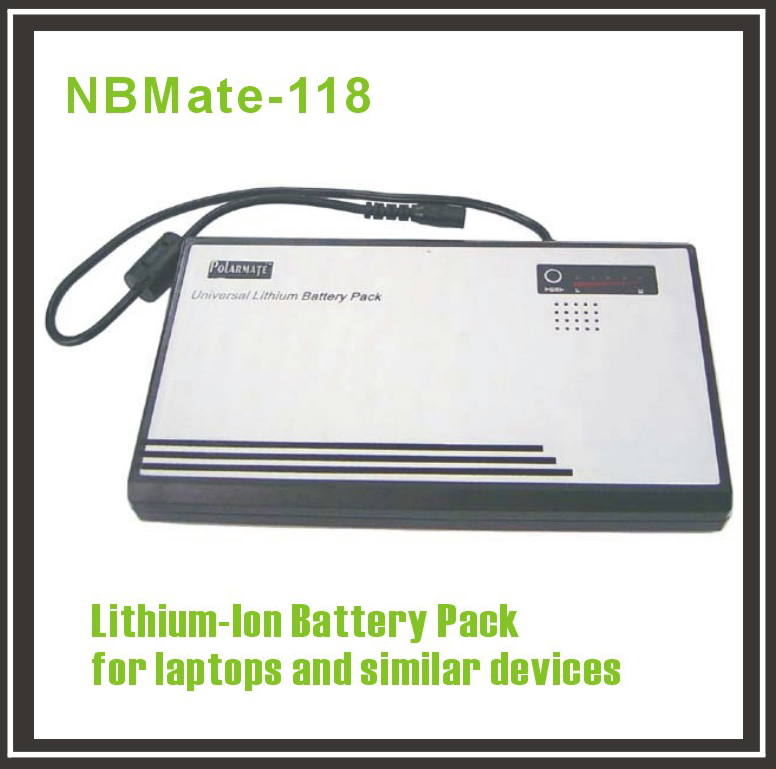

| Description:
External Lithium-Ion Battery Pack for laptops or similar devices.

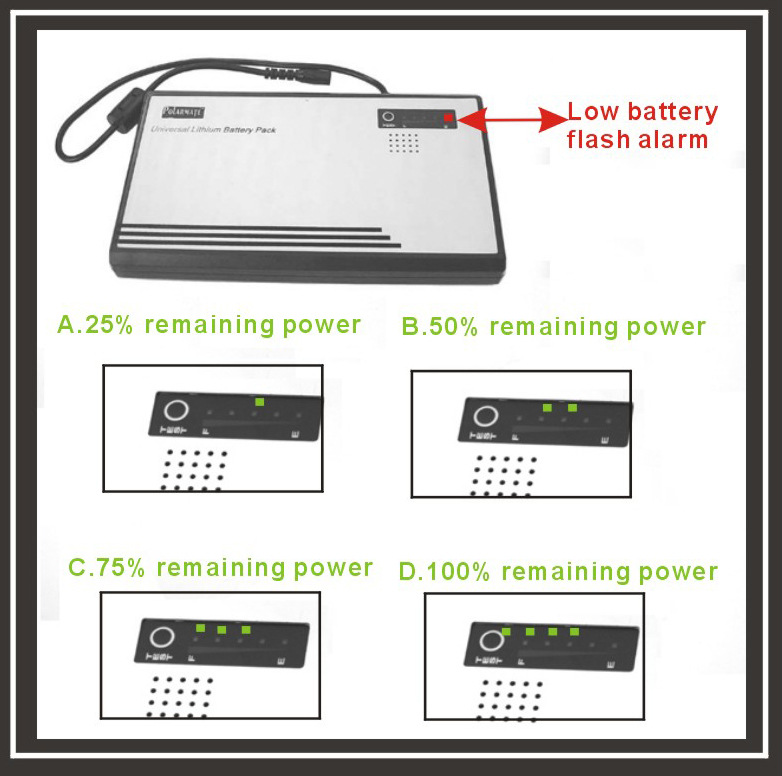

Cell: Lithium-ion cell(Imported from LG, Korea) Battery Capacity: 118Wh Battery Output Voltage: DC16/19V Battery Output Current: 4.5A Charge Time: 5.5 hours(6 hours maximum charge) Cycle Life: more than 500 times Charge Temperature: 0¡æ~40¡æ Discharge Temperature: -20¡æ~60¡æ(Recomend -10¡æ~50¡æ) Storage Temperature: -10¡æ~40¡æ(Recomend -5¡æ~35¡æ) Battey Size: 200mmX112mmX22mm Battery Weight: 750g Battery Gauge: 5 level LED indicator Battery Protection: over-charge/over-discharge/excess current/short circuit |
| Using the battery pack NBMate-118. | |
| * Step 1 * Step 2 |
|

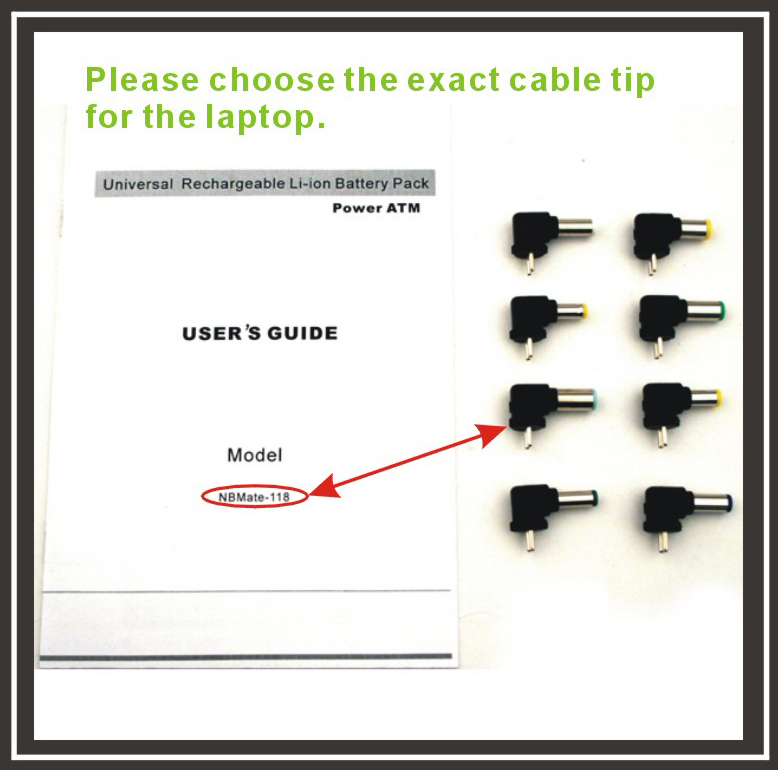

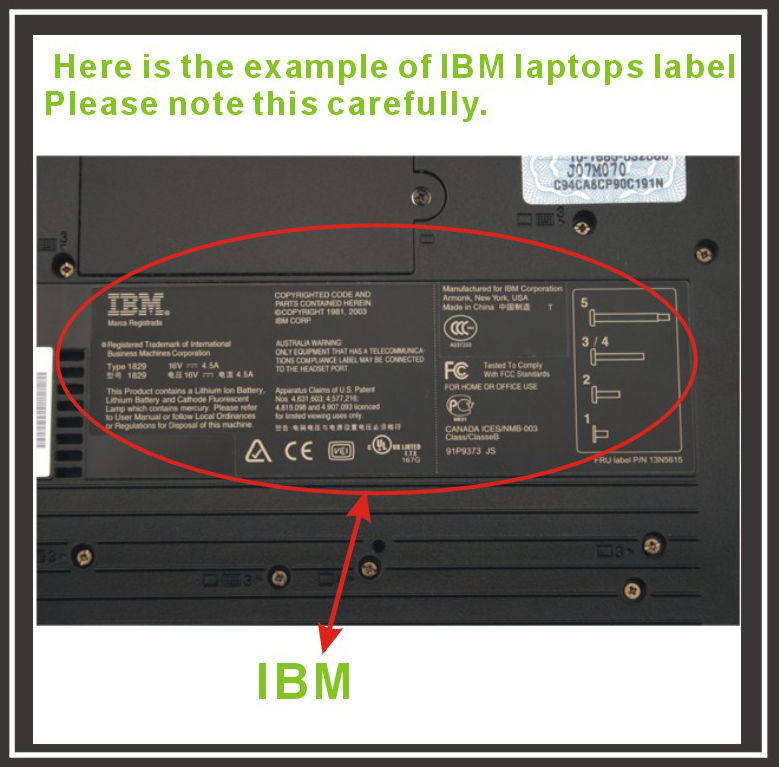

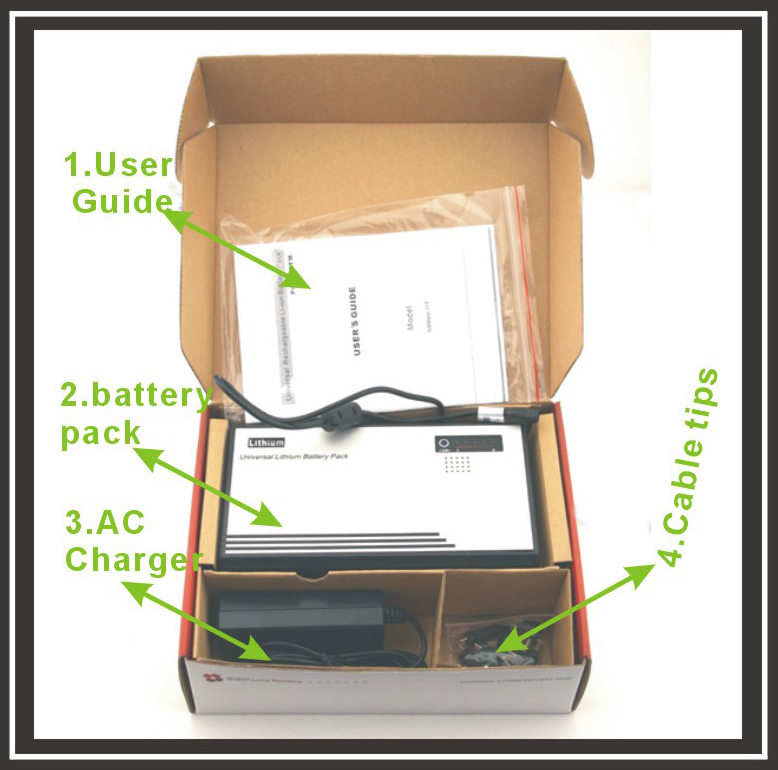

| Read the user's guide for NBMate-118 carefully to make sure using this battery pack correctly. | Re fer to the Operating Instruction of the digital cameras or devices as following example of picture. |
|
|
|
| *Step 3 |
|

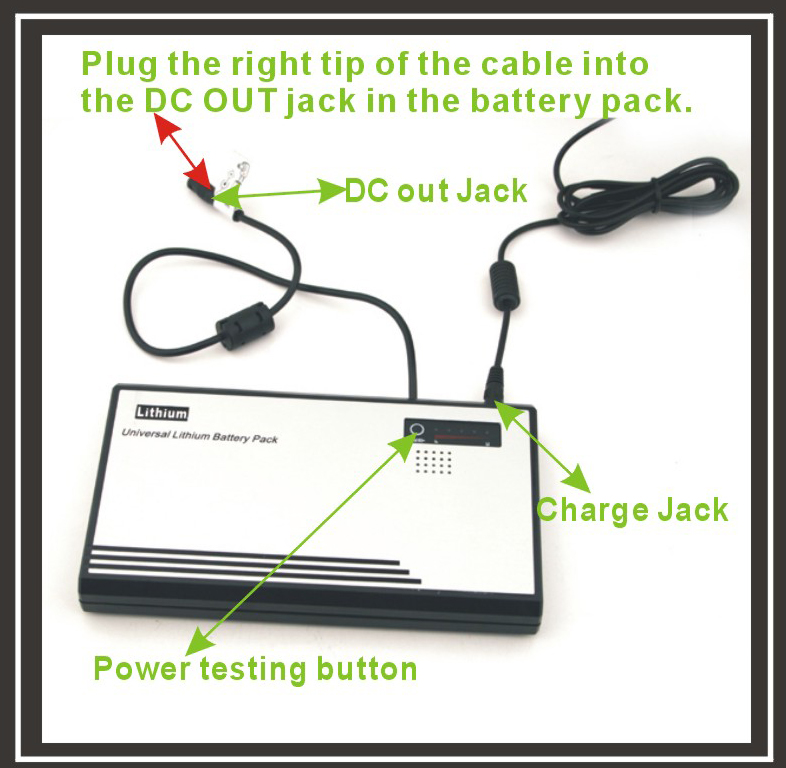

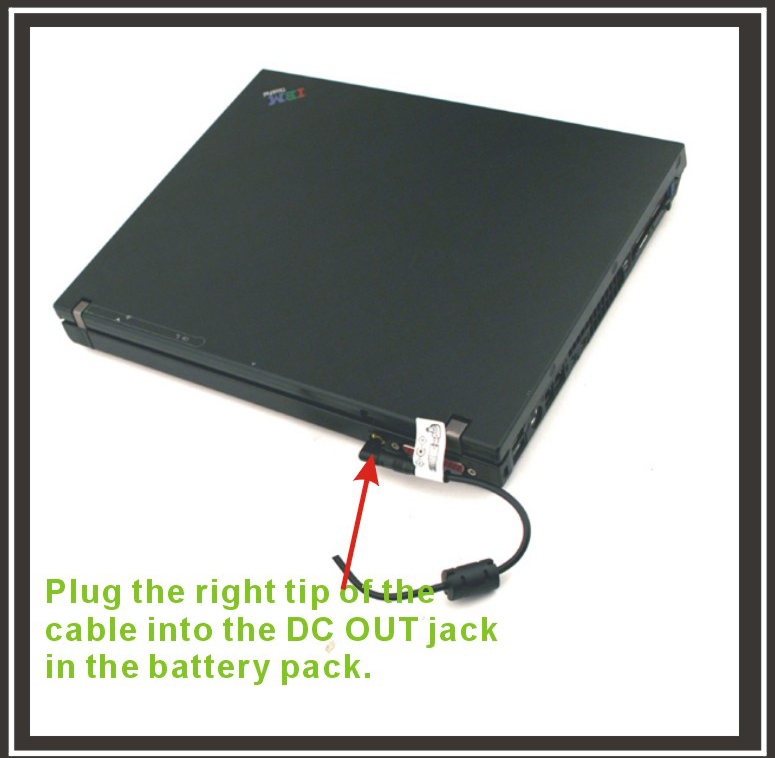

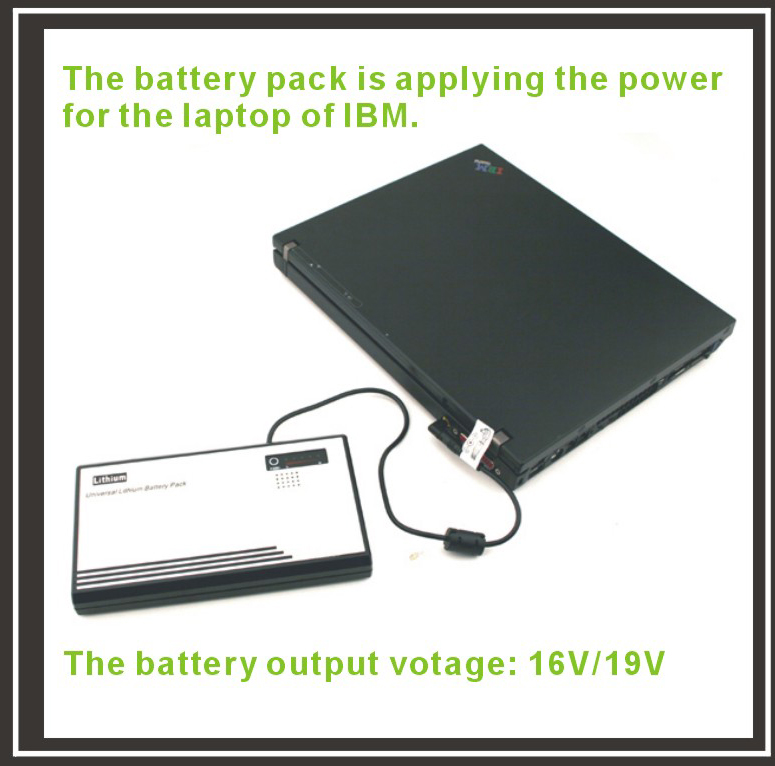

Please make sure the remaining power is enough, plug the right tip of the cable into the DC OUT jack in the battery pack, then plug the other tip into the DC IN jack in your digital device. And then press the Switch Button, the batty pack start to supply power for your digital cameras and devices. |
||
|
|
|
|
